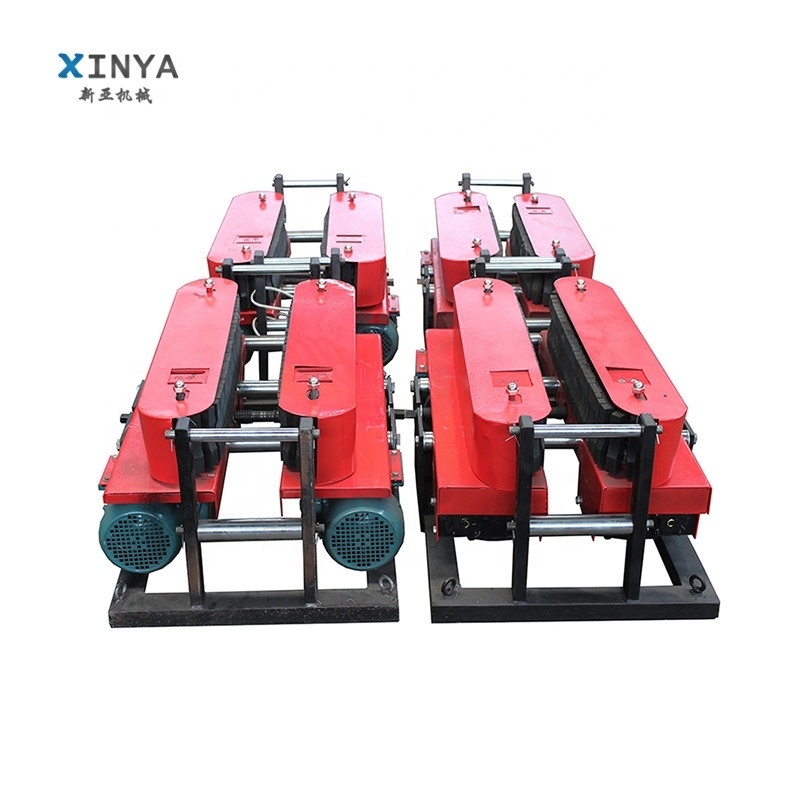

DSJ Series Electric Cable Pulling Machine 7KN Crawler Conveyor

Brand Name:	XINYA
Model Number:	DSJ
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Power Source:

Electric

Capacity:

7KN

Motor Type:

Electric engine

Cable Diameter:

25-150mm

Pulling Force:

7KN

Pulling Speed:

9m/min

Power:

1.1KW*2

Weight:

150kg

Dimensions:

950*500*400mm

Line Pulling:

700KGS

Transmission Ratio:

I=45

Rubber Thickness:

25mm

Model Type:

DSJ-150

Max Cable Diameter:

Φ30 - 180mm

Oversize Dimension:

950*500*400mm

प्रमुखता देना:

electric cable pulling machine 7KN

crawler conveyor cable winch

DSJ series cable puller

Product Description

Electrical Cable Pulling Tools DSJ Series Crawler Cable Conveyer

Product Specifications

Attribute	Value
Power Source	1.1KW*2
Pulling Force	7KN
Speed	9 m/min
Cable Diameter Range	25-150mm
Dimensions	950×500×400 mm
Weight	150 kg
Warranty	One year
Package	Wooden case

Technical Specifications

Model Type	DSJ-150	DSJ-180
Line pulling (KGS)	700	800
Pulling Speed (m/min)	8	6
Electric motor	1.1KW × 2	1.5KW × 2
Oversize dimension	950×500×400	1020×590×400
Weight (KGS)	150	180-200
Cable diameter	Φ30 - 180 mm	Φ30 - 200 mm
Transmission	I=45	I=60
Rubber sheet thickness	25mm	25mm

Product Description

The DSJ Series Crawler Cable Conveyor is an electric machine designed for efficient laying of power and communication cables. This robust equipment combines power and precision to streamline cable installation processes.

Key Features

Dual vertical shaft design protects cable insulation by driving transmission force and gravity in two directions
High-strength wear-resistant rubber compound caterpillar ensures uniform and durable power transmission
Adjustable roller system for convenient operation
Optional hinge wheel attachment for small power traction applications
Low mechanical noise operation with minimal temperature rise
Easy maintenance design for reduced downtime
Compatible with optional DSJseries electrical control systems and winding wheels
