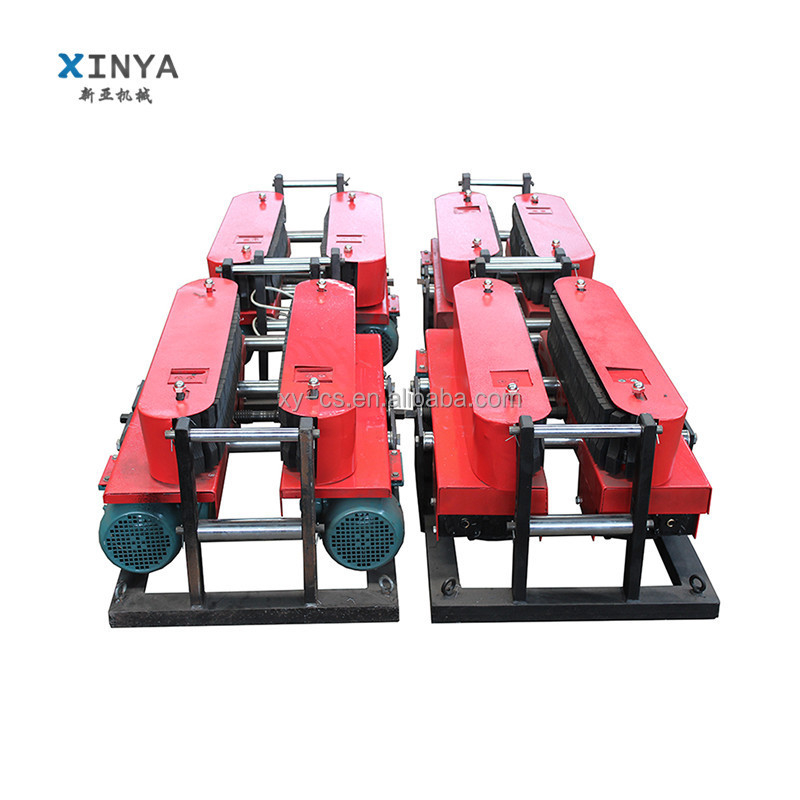

DSJ-150 Electric Cable Pulling Winch 700KGS Capacity 30-180mm Diameter

Brand Name:	XINYA
Model Number:	DSJ-150/180
MOQ:	1
कीमत:	$1,500-1,600

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Line pulling:

700 KGS

Pulling speed:

8 m/min

Electric motor:

1.1KW *2

Oversize dimension:

950*500*400

Weight:

150 KGS

Cable diameter:

Φ30 - 180 mm

Transmission ratio:

I=45

Rubber sheet thickness:

25mm

Model type:

DSJ-150

Cable diameter range:

30-180mm

Pulling capacity:

700 KGS

Motor power:

1.1KW *2

Machine dimensions:

950*500*400

Machine weight:

150 KGS

Transmission:

I=45

प्रमुखता देना:

electric cable pulling winch 700kgs capacity

cable winch puller 30-180mm diameter

DSJ-150 electric winch with warranty

Product Description

DSJ-150 Electric Underground Cable Installation Tools Cable Hauling Machine

Product Specifications

Attribute	Value
Warranty	1 year
Customized Support	OEM
Application	Power Construction
Line Pulling (KGS)	700
Cable Diameter	30-180mm
Rubber Sheet Thickness	25mm
Pulling Speed (m/min)	6

The DSJ-150 Electric Underground Cable Installation Tools Cable Hauling Machine is the ideal solution for cable transmission in power, petroleum, chemical, industrial construction, power plant extension, substation and city network transmission applications. It is suitable for cable trays in any form of channel, cable pipe, and can convey various power cables and control cables.

Primary Applications

This cable pulling machine is designed for laying large diameter power cables and communication cables in underground installations.

Key Features

Driven by double vertical shaft for optimal performance
Uses hauling capacity and gravitation separately on two directions to protect high voltage cable insulation
Cable passes through the machine via multi-caterpillar hauling capacity
Includes positive/reversing power switch and height-adjustable rollers
Optional capstan attachment available for use as a small power tractor
Custom electrical control systems available (main control case, branch control case, wire winding wheel, etc.)

Operational Advantages

Significant labor savings
Improved working conditions
Reduced labor intensity
Enhanced work efficiency
Increased job site safety

Technical Specifications

Specification	Value
Model Type	DSJ-150
Line Pulling (KGS)	700
Pulling Speed (m/min)	8
Electric Motor	1.1KW × 2
Dimensions	950 × 500 × 400 mm
Weight (KGS)	150
Cable Diameter	Φ30 - 180 mm
Transmission	I=45
Rubber Sheet Thickness	25mm

For Pricing and Customization:

Please provide the following information in your enquiry:

Electric motor specifications
Required pulling speed (m/min)
Required pulling capacity
Cable diameter requirements

We will provide a competitive quote after confirming these details. Contact us by phone or email for more information about our products.
