| Brand Name: | OEM |
| Model Number: | DSJ |
| MOQ: | 1 |
| Attribute | Value |
|---|---|
| Power Source | Electric |
| Application | Power construction |
| Capacity | 700/900KGS |
| Oversize dimension | 950*500*400 mm |
| Weight | 150 KG |
| Cable diameter | 30-180mm |
| Electric motor | 1.1KW * 2 |
| Pulling Speed (m/min) | 8 |
| Pulling (KGS) | 700 |
| Warranty | One year |

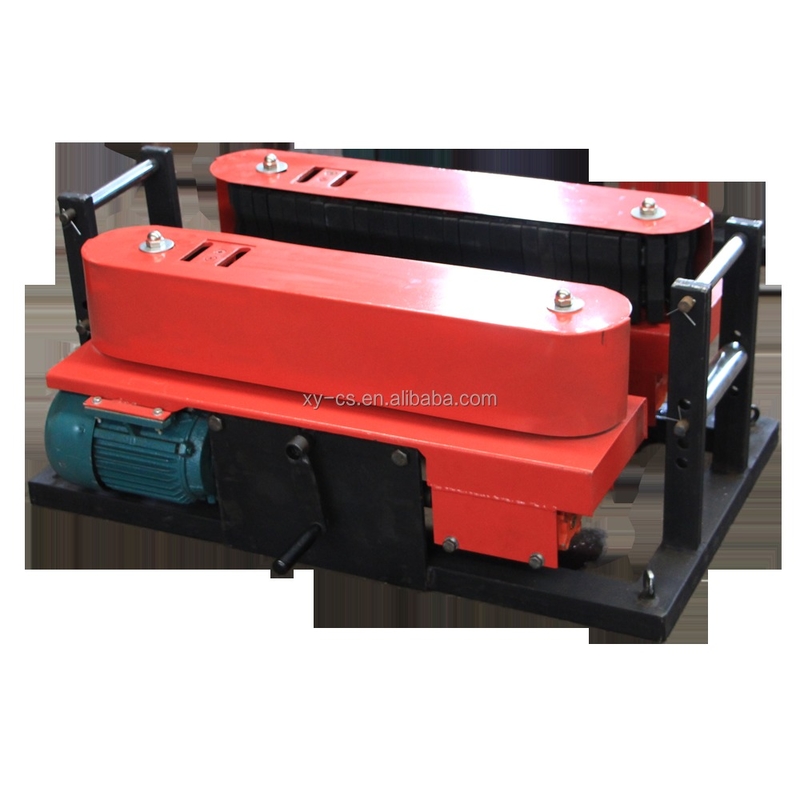

The DSJ Cable Laying Machine / Cable Pulling Winch Machine is designed for efficient transmission of 3*400 sqmm copper cables in various industrial applications.
This cable pulling winch machine is ideal for cable transmission in:
| Model Type | DSJ-150 | DSJ-180 |
|---|---|---|
| Line pulling (KGS) | 700 | 900 |
| Pulling Speed (m/min) | 8 | 6 |
| Electric motor | 1.1KW * 2 | 1.5KW * 2 |
| Oversize dimension (mm) | 950*500*400 | 1020*590*400 |
| Weight (KGS) | 150 | 180-200 |
| Cable diameter | Φ30 - 180 mm | Φ30 - 200 mm |
| Transmission | I=45 | I=60 |
| Rubber sheet thickness | 25mm | 25mm |
